ACCESS VHF SERIES USER GUIDE

This user guide provides detailed instructions for your Access VHF series wireless system. To get your system up and

running in minutes, see the Access VHF Series Quick Set Up Guide.

Your new Access VHF Series system is designed to give you both the freedom of a wireless system and world-famous

Shure sound quality. This manual covers both Single antenna and Diversity versions of the Access VHF Series systems:

the AXS31/58 handheld systems; the AXSGW bodypack systems; the AXSHW Headset systems; and the AXSLWD la-

valier microphone system.

Wireless

System

Components

AXS31 and AXS58

Hand-held systems for

singers.

AXSGW

Bodypack systems for elec-

tric and bass guitarists. Can

also be used with other elec-

tric instruments

AXSHW

Bodypack system for ap-

plications requiring hands-

free operation, such as aero-

bics or percussion

AXSLWD

Bodypack system for public

speaking, theater, or busi-

ness presentations.

Transmitter AXH2 Handheld

Transmitter

AXB1G Bodypack

Transmitter

AXB1 Bodypack

Transmitter

Microphone SM58 or BG3.1 –– WH20 Headset

Microphone

WL93 omnidirectional

lavalier

Receiver AXR3 single antenna or AXR4N Diversity

Power Supply PS20 (105–125 VAC, 60 Hz)

Supplied

Accessories

Carrying and storage case; Receiver feet; Hook and loop fastening strips; gain adjustment screwdriver

Accessories

microphone stand adapter 1/4” to 1/4” guitar cables (2)

RECEIVER FEATURES

AXR3 AXR4N

SHURE BOTHERS INC.

EVANSTON

60202

USA

12–18 VDC

DC INPUT

UNBALANCED

HIGH

BALANCED

SQUELC H

MIN MAX

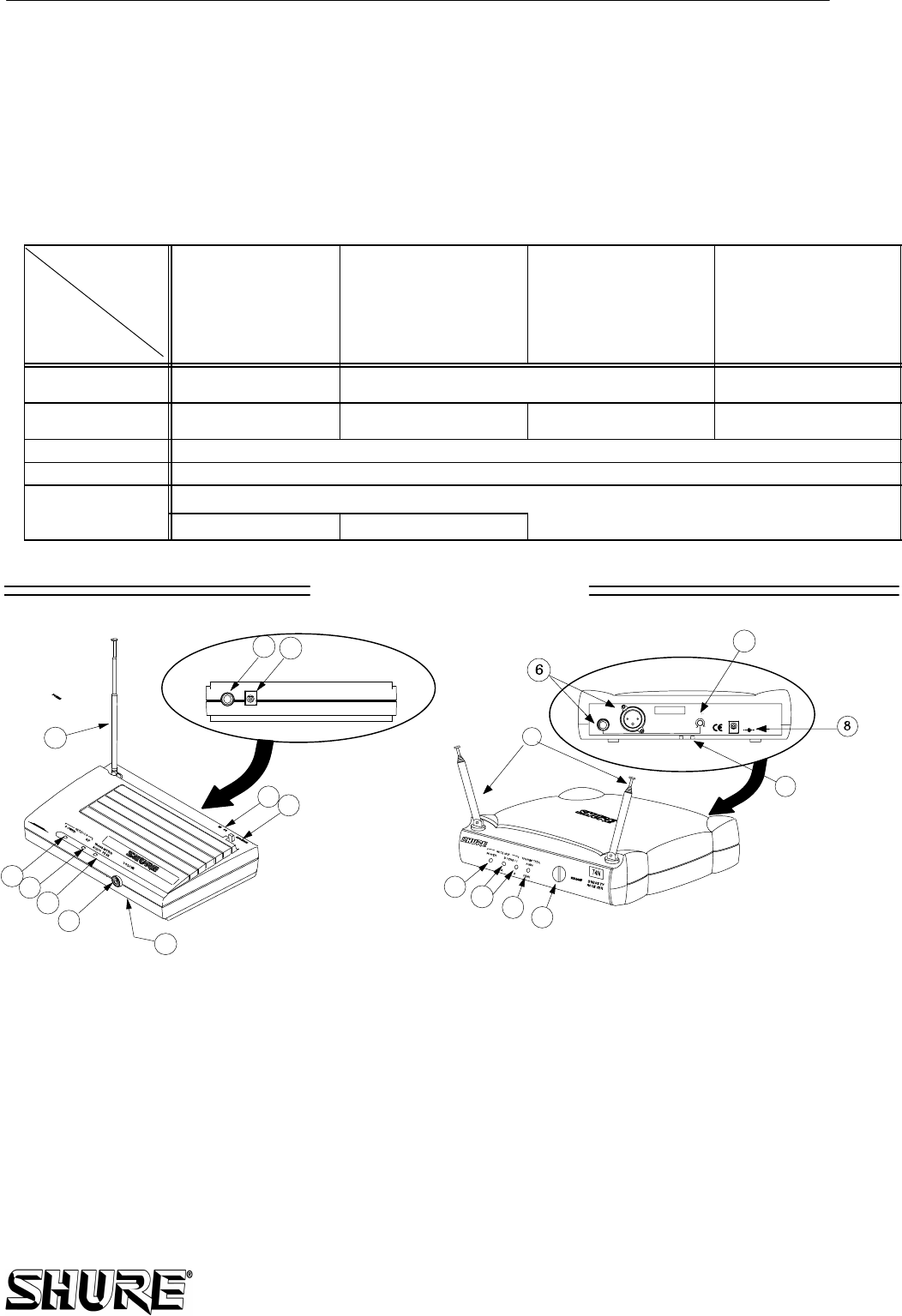

FIGURE 1. AXR3 AND AXR4N RECEIVER FEATURES

1. Power On Indicator: Glows green when the receiver is

powered on.

2. RF Signal Indicator:

AXR3

: Glows yellow when RF (radio

frequency) signals are received.

AXR4N

: One of two indica-

tor lights glows when RF is received by antenna A or B.

3. Audio Peak Indicator: Flashes red when the audio signal

received approaches overload clipping level.

4. Volume Control: Adjusts the output volume of the receiver.

Does not affect Transmitter Audio Peak indicator.

5. Telescoping Antenna(s): Receives signals from the trans-

mitter.

6. Audio Output: Provides mic level signal for connection to

amplifiers or mixing consoles.

AXR3

: 1/4 inch phone jack.

AXR4N

: 1/4 inch phone jack and male XLR connector.

7. Squelch Control: This control is factory pre-set and nor-

mally requires no adjustment. See

Wireless System Adjust-

ments

at the end of this guide.

8. Power Input: Accepts power from supplied AC adapter.

9. Power Cable Retainer:

AXR4N

only. Secures the AC

adapter cable to the receiver.

1 2 3 4 5 6 7 8
